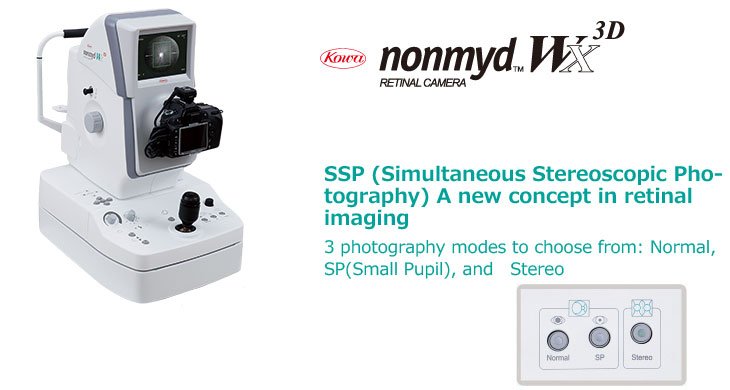

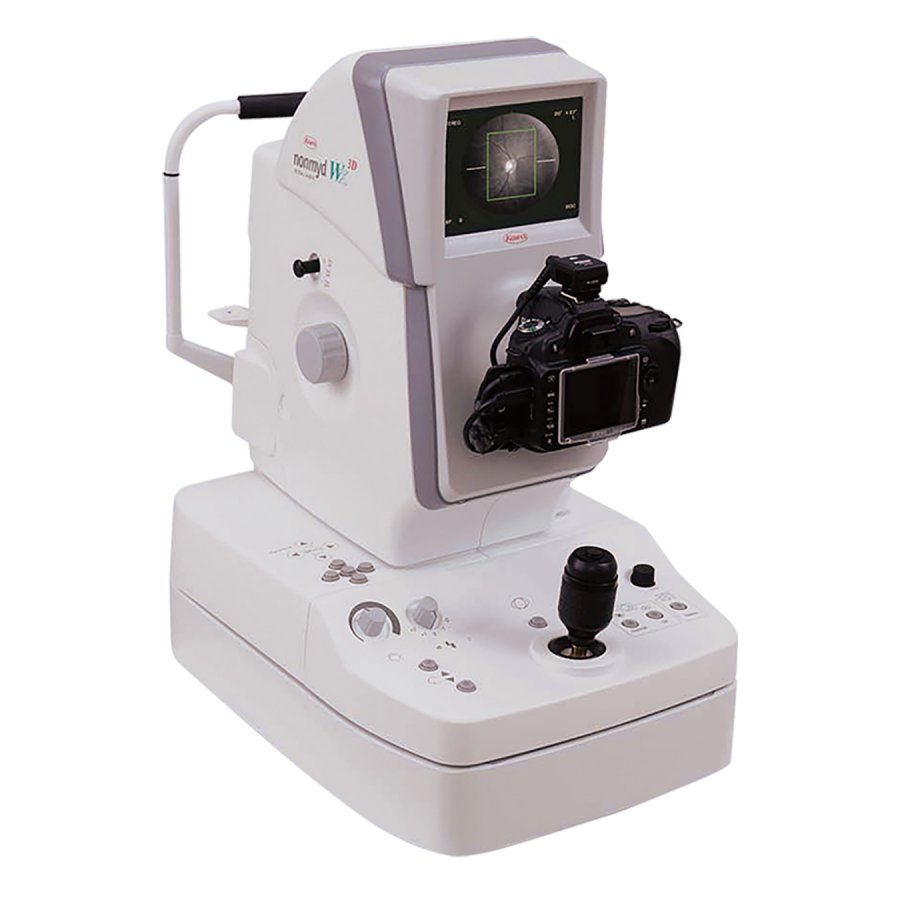

Kowa Nonmyd WX 3D

Normal Field angle : 45°

Kowa's exclusive optical design in combination with the digital SLR camera delivers extremely detailed retinal images.The integrated 9-point internal fixation light allows for mosaic photography covering a large retinal area.

SP(Small Pupil) Field angle : 45°

Retinal images can be taken even with smaller pupils. On screen guides indicate if the pupil size is within the sufficient range (above φ3.5 mm) for photography.

Automatic mosaic merge function

Mosaic images are created easily with automatic image rotation & alignment.

Stereo Field angle : 34°(20°×27°)

Photography

Instant and simultaneous 3D photography is possible in 1-shot.

Retinal observation on 3D images

The shape of the optic disc and cup can be viewed on a 3D image.

Switch between the parallel and cross viewing methods with 1-click when viewed on a 2D monitor.

Time sequential movie

The chronological change of the shape of the optic disc and cup can be viewed on a moving image.

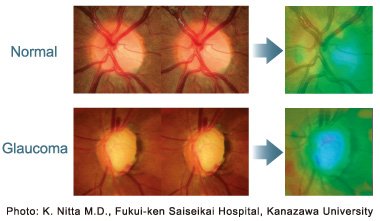

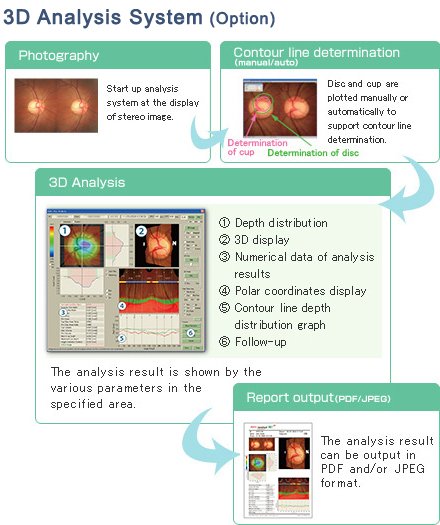

Depth distribution

Color-coded display of the depth distribution in the analysis area, or graphical display of the cross section of an arbitrary position.

3D display

Display of 3D image based on stereographic data.

Numerical data of analysis results Display of optic disc parameters including "DDLS".

Polar coordinates display The polar coordinates display of the depth distribution permits visual display of the thin part of the rim. (marginal region of optic disc)

Contour line depth distribution graph Graphical display of the depth distribution of disc and cup profiles.

Follow-up Graphical display of cup/disc ratio, rim/disc ratio, cup area, and many other parameters.
